Tekno Commercial Bunk Bed
Convertible Architecture & Extreme Logistics

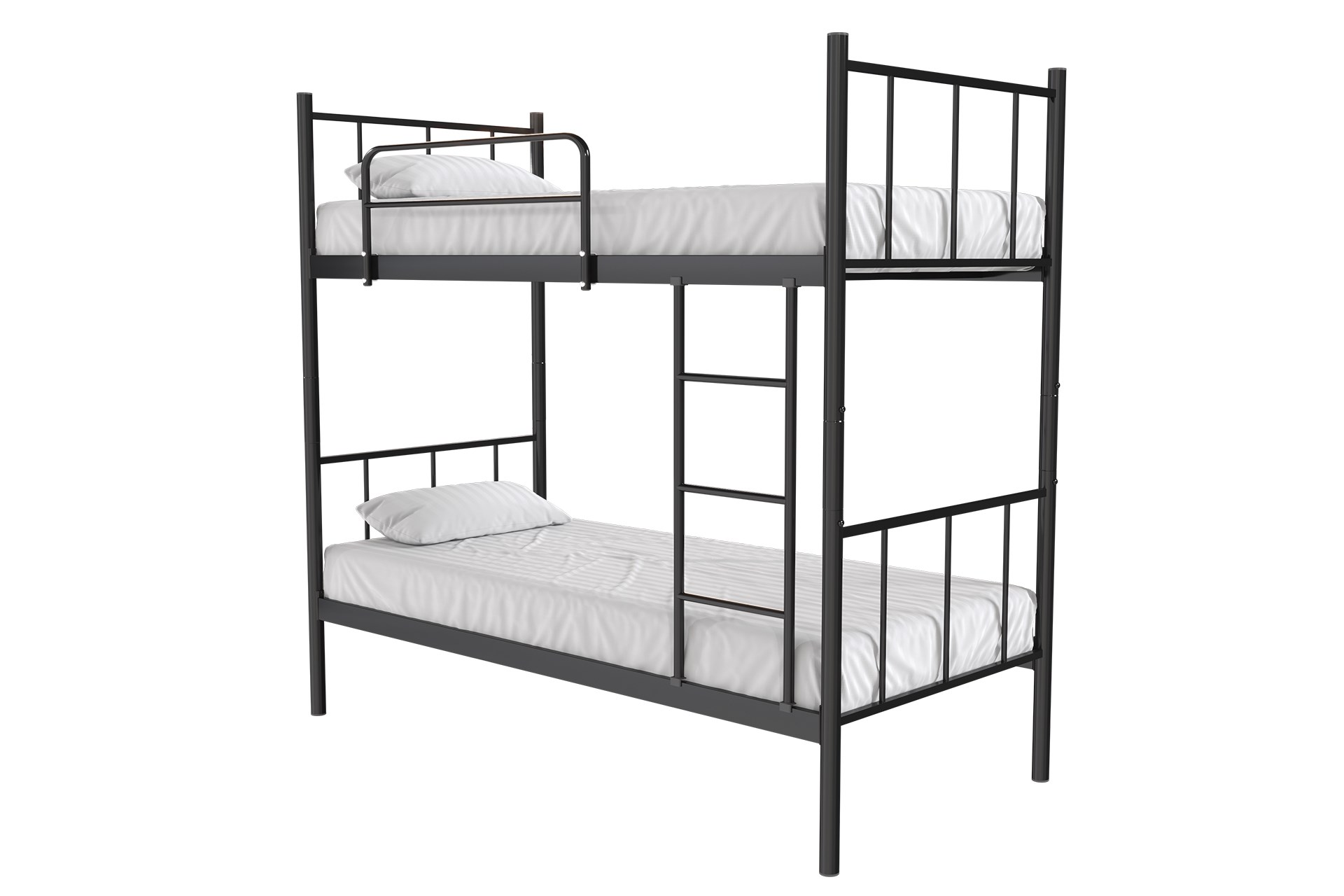

The Tekno bunk bed redefines multi-level architectural sleeping arrangements. By sourcing from a dedicated bunk bed manufacturer, facility directors guarantee unparalleled durability. Operating a demanding lodging environment requires sleep systems that ignore continuous daily abuse while providing unmatched spatial flexibility.
When outfitting expansive properties, finding a robust bunk is critical. Every high-density room requires a permanent bed that withstands constant daily usage. A heavy duty layout ensures that occupants receive uninterrupted rest. Relying on an advanced metal framework guarantees that multiple beds perform flawlessly without experiencing the mechanical fatigue that plagues substandard consumer furniture.
Ultimate Versatility: The Convertible Framework
A bustling hostel requires highly adaptable floor plans. Upgrading an aging dormitory means selecting systems that evolve with changing occupancy demands. The Tekno model introduces a revolutionary concept to institutional buyers: it offers separate single bed usage. This convertible capability allows facility managers to split the towering bunk into two identical, floor-level units instantly.
This transformation is achieved through specialized metal profile insert nipples. These engineered connectors lock the upper and lower columns firmly together when stacked, yet allow rapid separation without the need for complex power tools. If a room layout shifts from shared housing to private quarters, a towering bed becomes two independent beds effortlessly. This operational flexibility maximizes the return on investment for any commercial real estate portfolio.
Additionally, the unit features a customizable positioning option for ladder and security rail segments. This means the access point can be installed on either the left or right side during the initial assembly, ensuring the bunk conforms perfectly to the specific architectural constraints of the suite.

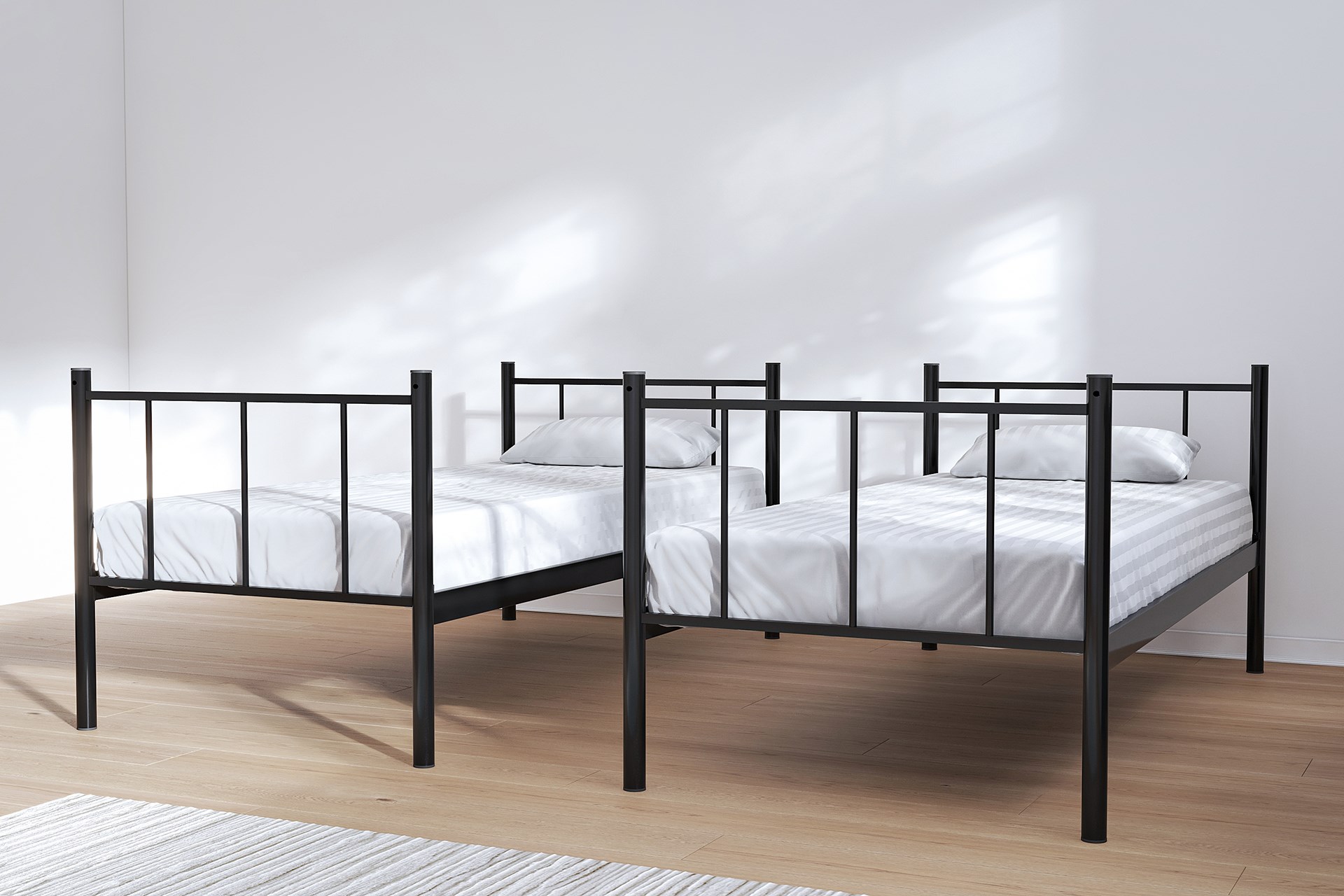

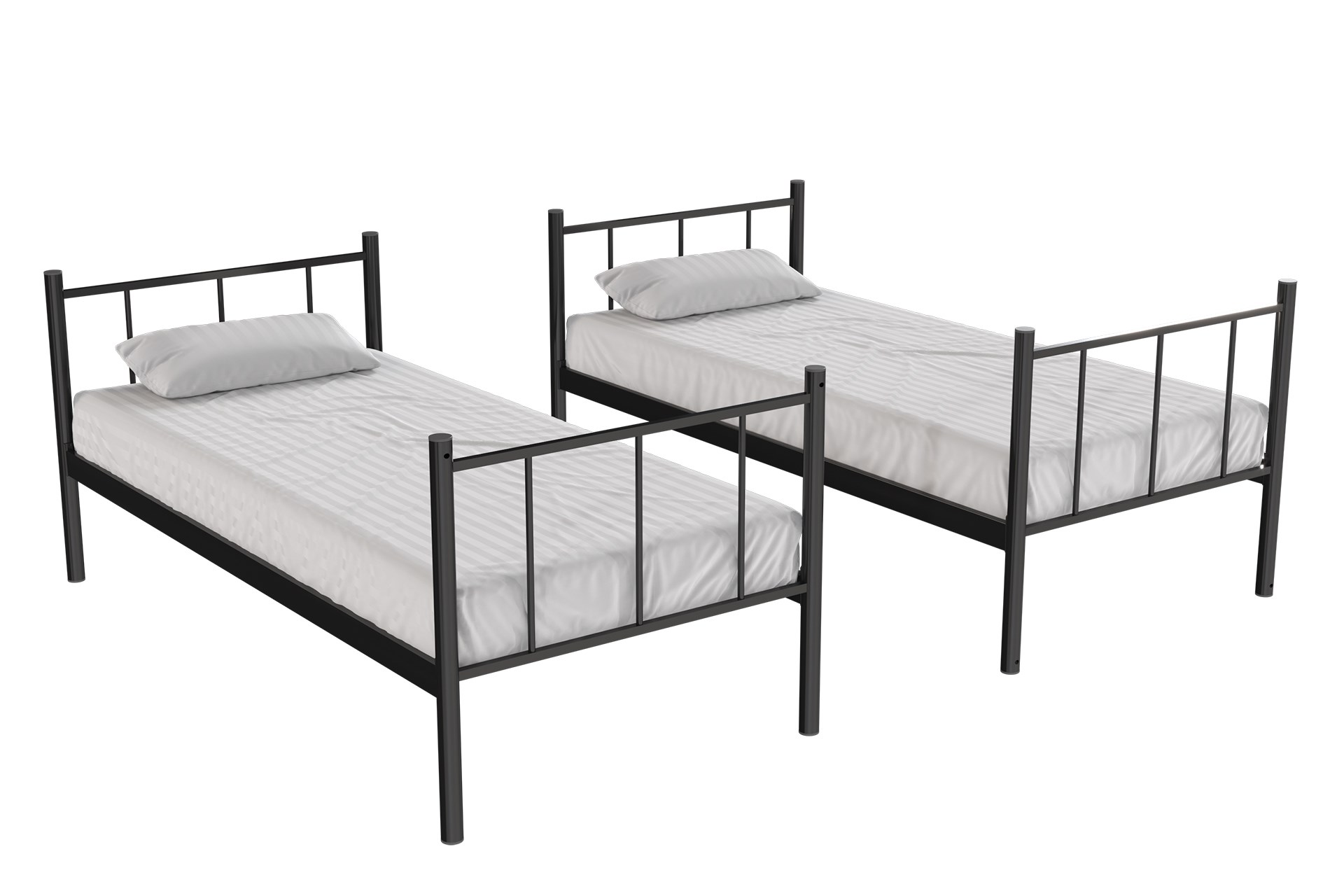

Separable Single Modules
Instantly transform the towering framework into two independent beds for maximum layout flexibility.
Insert Nipple Assembly
Robust metal profile insert nipples guarantee a rigid, sway-free connection when stacked vertically.
Customizable Ladder Positioning
Fastening components allow the access ladder and guard rail to be positioned dynamically.
Precision Metallurgy and Acoustic Eradication
Securing a massive wholesale order demands a trustworthy supplier. Avoiding brittle iron is the primary rule of institutional procurement. Premium cold-rolled steel guarantees the structural permanence required for intensive daily usage. The four vertical columns utilize robust 42 Ø-1 mm round tubing. This cylindrical geometry eliminates dangerous sharp edges, softening the industrial aesthetic while providing immense vertical load resistance for every bunk deployed on site.
Friction is the ultimate enemy of a peaceful night's rest. Micro-movements between loosely bolted components create echoing disturbances. To counteract this, our engineers focus heavily on the mattress foundation. Rather than using wooden elements that warp, the Tekno model employs knock-down metal slats supported with noise reducer plastic caps.
Exactly 8 pieces of 15x25-0,70 mm transverse crossbars are locked into these polymer buffers. This completely isolates the metal slats from the 20x60-1 mm deep structural side bars. By removing metal-on-metal contact, the bed remains entirely silent. Additionally, the headboards incorporate elegant 13 Ø-0,70 mm and 20x20 0,70 mm patterns, blending immense strength with visual sophistication.
Extreme Volumetric Efficiency and Packaging
A direct producer operating an automated factory provides massive logistical advantages. Managing international freight requires navigating dimensional weight calculations meticulously. A compressed bunk slashes maritime transportation costs exponentially. Procuring dismantled beds streamlines the entire global supply chain. A well-packaged bed arrives safely without transit damage, ensuring immediate deployment readiness.
The Tekno model is a masterpiece of flat-pack engineering. A 90x190 cm unit is distributed across 2 separate packages. Pack #1 measures 79x104x18 cm, and Pack #2 measures 15x13x193 cm. Together, they create an incredibly small total cargo volume of just 0.186 m³. This hyper-volume optimization allows an astonishing ~375 pieces to fit inside a single 40'HC shipping container. Furthermore, a standard cross-border truck can accommodate ~470 pieces.
Similarly, the 90x200 cm configuration generates a minimal volume of 0.188 m³ utilizing a slightly longer second package (15x13x203 cm). This variation easily allows ~370 pieces inside a 40'HC container. For customized regional demands, an estimated 100x200 cm model weighs approximately 40.5 kg, fitting roughly 325 units per high-cube container. Every component is protected by durable cardboard packing, preserving the electrostatic powder coating across thousands of sea miles.
| Configuration (cm) | System Weight | Carton Dimensions (cm) | Cargo Volume | 40'HC Container Capacity |
|---|---|---|---|---|
| Tekno 90x190 | ~36 kg | 79x104x18 & 15x13x193 | 0.186 m³ | ~375 pcs |
| Tekno 90x200 | ~37 kg | 79x104x18 & 15x13x203 | 0.188 m³ | ~370 pcs |
| Tekno 100x200 | ~40.5 kg (Calc.) | 89x104x18 & 15x13x203 (Calc.) | 0.213 m³ (Calc.) | ~325 pcs (Calc.) |
Global Deployments and Safety Metrics
An active army installation values modular setups for rapid barracks expansion. A secure military compound requires structures that adapt swiftly to troop rotations. Outfitting a remote worker camp means prioritizing fast assembly. An emergency shelter benefits from this adaptability, converting rooms instantly based on demographic needs. Even a highly secure prison utilizes the tamper-proof design parameters inherent in these heavy-duty frameworks.
A temporary refugee center must deploy platforms that maximize density without compromising human dignity. A modern correctional facility relies on the robust welded headboards to maintain behavioral order. Protecting the occupant from accidental injury dictates the external design of the unit. The guard rails use 25 Ø-0,80 mm and 21 Ø-0,80 mm profiles, matching the ladder components precisely.

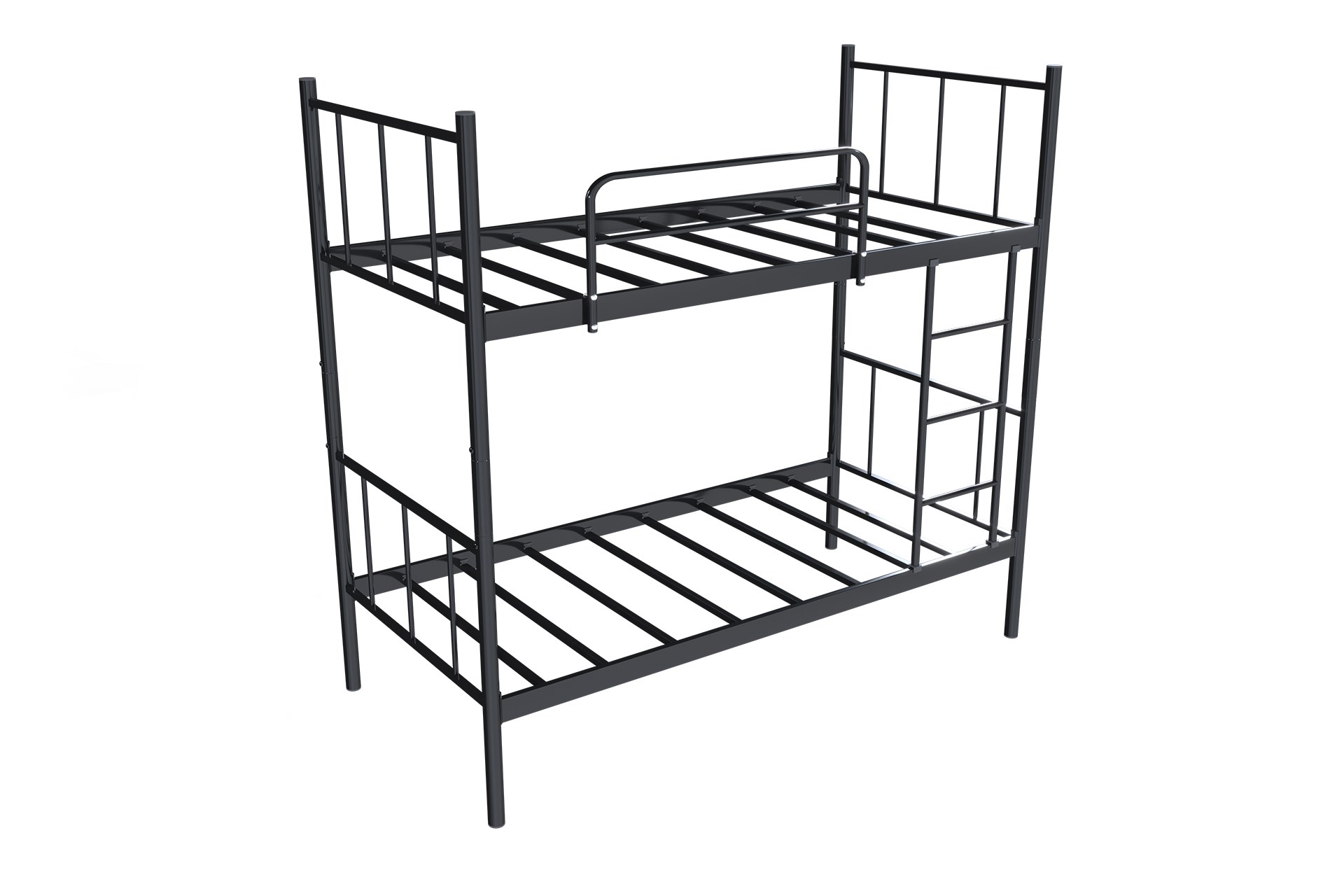

Spatial ergonomics are mapped flawlessly. The total height reaches 168 cm, allowing substantial vertical breathing room. The ground clearance sits at 25 cm, perfect for storing large luggage underneath. The distance between the two tiers is an expansive 86 cm, ensuring the bottom occupant never feels enclosed. Finally, the upper safety guard rail rises 75 cm from the slat foundation, ensuring total security during sleep.
Frequently Asked Procurement Questions
Can it serve an army base?
Yes, the military logistics network values its modular, two-pack shipping efficiency.
Is it suitable for a modern hostel?
Absolutely, a university dormitory also relies on it to eliminate noise complaints.
Can it support a displaced refugee?
Yes, it provides rapid, dignified rest inside any transitional shelter.
Are you the direct factory?
Yes, the producer guarantees zero defects before dispatching the cargo.
Do you act as the trusted supplier?
Yes, managing all volume logistics directly to your facility.
Is it safe for a minimum-security prison?
The robust design is ideal for any correctional institution requiring sturdy fixtures.
Can it be used in a women's shelter?
Yes, and it also serves perfectly when supporting a tired worker inside an industrial cabin.
What guarantees its longevity?
The complete rejection of cheap iron to ensure premium steel longevity.
Fortify Your Project with Transformative Architecture
Direct container exports. ISO 9001 certified manufacturing. As a wholesale leader, we deliver global supply chain excellence.
